Fs115 SERIES

The Fs series speakers are a brand-new integrated system launched by BUTTERFLY. The entire system consists of single 10-inch, single 12-inch, single 15-inch full-range speakers, as well as single 18-inch and dual 18-inch subwoofers. Among them, the single 10-inch and single 12-inch full-range speakers are designed as rear-ported built-in two-way audio systems, intended for speech and music sound reinforcement applications that require low-frequency compensation but do not need additional subwoofers for compensation. They are also suitable for various fixed installation scenarios.

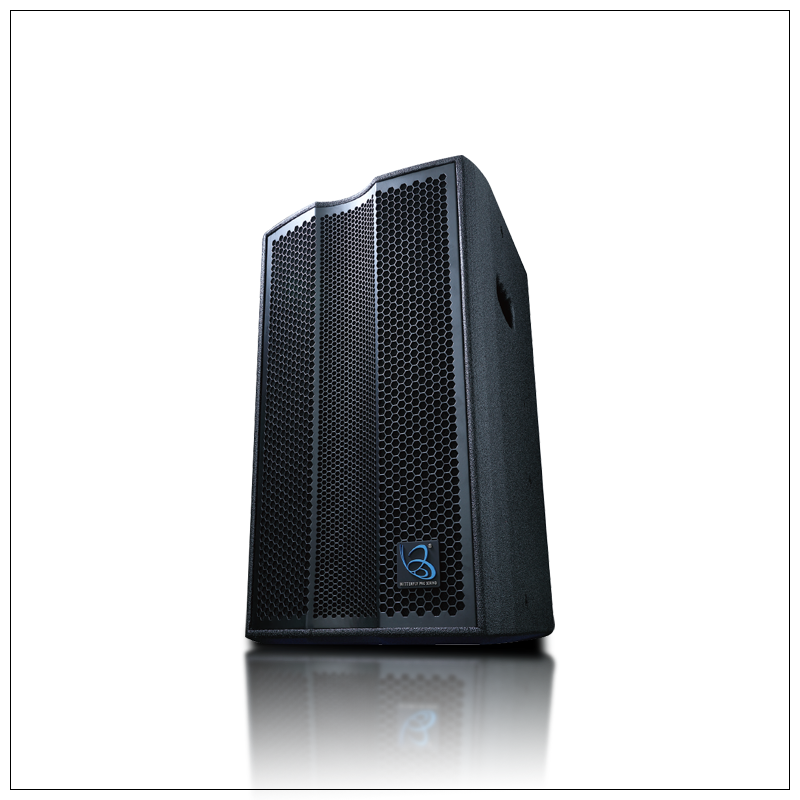

The Fs-115 is composed of a 15-inch direct-radiating mid-low frequency paper cone unit and a 3-inch (75mm) high-frequency titanium diaphragm compression driver, with a coverage angle of 80°x50° and a maximum peak sound pressure level of 133dB. It incorporates a built-in passive crossover that does not use attenuation resistors, thus avoiding the problem of resistor heating under high-power conditions and eliminating the impact of attenuation resistor inductance on high-frequency bands. Meanwhile, it increases the damping factor of the system and the efficiency of the speaker.

售价:

￥0.00

产品详情

Product Specifications

Type : Built-in 2-way full-range system
Frequency response : 53Hz - 18kHz (±3dB)
Power handling AES : 500W
Peak power : 2000W
Sensitivity : 100dB
BContinuous sound pressure : 127dB
Max sound Pressure : 133dB
Dispersion : 80°x 50°
Low frequency : 1×15” (380mm)
High frequency : 1×3” (75mm)
Nominal impedance : 8 Ω
Input connectors : 2 × Neutrik™ NL4MP
Box Structure : Trapezoidal cabinet
Box material : Multi-layer birch plywood
Finish : Black matte polyurea paint finish
Metal treatment : High-temperature baking paint finish
Face mask Material : Steel grille + dust cover/mesh cloth
Lifting way : 12×M10 suspension points (lifting rings)
Box Size : 447mm × 690mm × 436mm
Weight : 35kg
Recommended Amplifiers : 800W - 1000W/8Ω
